High-level disinfection in 120 seconds for TEE probes

No chemicals, no wipes, fully validated

D60
Currently

Slow turnaround times
‍
With the D60:
120 second cycle

‍

Currenlty

Chemical damages

With the D60:
Chemical-free disinfection

Currently

High recurring costs

With the D60:
No recurring disinfection costs

Sustainable, economical and environmentally friendly

Disinfection without chemicals or water. UV lamps with low energy consumption (UV Smart participates in the Green Deal).

Disinfectie in 7 easy steps

How to use the UV Smart D60.

Step 1: Start the process

Pre-clean your equipment and perform a leak test

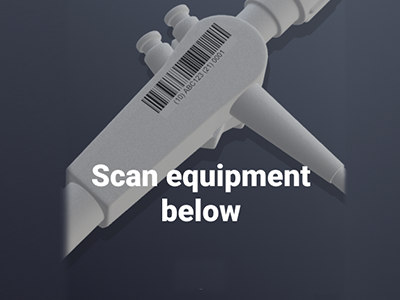

Step 2: Scanning

Scan your ID and the equipment to comply and store necessary data

Step 3: Placement

Place the equipment in the D60 and close the door.

Step 4: Disinfection

Wait 120 seconds for the D60 to finish the cycle.

Step 5: Scanning

Scan your ID

Step 6: Hand disinfection

Desinfect your hands

Step 7: Finished!

Remove the disinfected equipment from the D60. It is now ready for use.

See how the D60 can be applied
in a hospital ward

Watch the instruction video here.

Implementation of the D60 for a client in the Netherlands.

What medical specialists have to say about the D60

Simple and Fast

In a nursing home, we see that bacteria such as MRSA are more common, and we use the D25 to protect our patients.
Dr. H. van Willenswaard
GZ psychologist

"

Great for all small devices

It can also be used to disinfect small medical devices such as stethoscopes and the like.
Dr. J. Sinnige
Doctor-Microbiologist

"

A simple procedure

Compared to conventional methods to disinfect ENT scopes, it is a cost-effective and simple procedure.
Dr. S. Hoch
Senior doctor - head of polyclinic

"

More time for patients

With the arrival of the D60, we have a lot of time left and can devote more care to the patients. That's what we do it for, after all.
J. van Kampen
Doctor's assistant ENT

"

The D60 is sustainable

The use of the D60 is a sustainable disinfection option. This method does not produce waste like other methods do.
Dr. S.A. Rudhart
Doctor's assistant

"

Wondering what the D60 can do for your organisation?

Order now
  • Disinfect your TEE probe in seconds
  • No more chemicals, consumables or water
  • Treat more patients with less inventory
Certifications
Specifications
Clinical evidence
Frequently asked questions
FDA

UV Smart D60 is FDA cleared.

It indicated for use in a healthcare environment to achieve a high level disinfection (HLD) of external surfaces of Transesophageal Echocardiogram (TEE) probes that do not contain lumens and that do not contain indentations or channels that are deeper than their widths.

‍

Standards
  • MDSAP
  • ISO 13485
  • MDR (EU 2017/745)

‍

Approved registrations
  • Approved to sell in over 35 countries
  • Approved in National Guidelines of Australia, France, Germany, Ireland, the Netherlands, Sweden, Switzerland, and the UK.

‍

Patent protection

Impelux™ is a patented technology that uses UV technology for guaranteed disinfection without damaging equipment and with validated and continuous effectiveness.

Technical specifications

It indicated for use in a healthcare environment to achieve a high level disinfection (HLD) of external surfaces of Transesophageal Echocardiogram (TEE) probes that do not contain lumens and that do not contain indentations or channels that are deeper than their widths.

‍

Dimensions

Width: 33,8 inches
Depth: 18,6 inches
Height: 80 inches

‍

Power cable

Length: 6,6 foot

‍

Disinfection cycle

120 seconds

‍

Effective against

Bacteria, spores, yeast, fungi, mycobacteria, tuberculin and viruses

‍

‍

Clinical evidence

The disinfection efficiency of the UV Smart D60 has been validated and proven by extensive research conducted in medical centres such as: Spaarne Gasthuis (Netherlands), Marburg University (Germany) and UZ Gent (Belgium). Studies have also been conducted in clinical laboratories (and institutions), including Streeklab Haarlem (Netherlands), and Eurofins (Italy).

Eurofins and Streekklab Haarlem*

Eurofins and the Streekklab concluded that D60 meets the European standard for cleaning and disinfection of medical devices. Conclusion: D60 meets the NEN-EN-14885:2018 standards for the full spectrum of micro-organisms.

Spaarne Gasthuis*

Spaarne Gasthuis compared the D60 with standard washer disinfectors. The conclusion: the first part of the laboratory research showed that the D60 complies with the reduction requirements for S. aureus, C. albicans, S. pneumoniae, B. subtilis and E. coli. The second part of this study found that, on average, the D60 showed a visible improvement in terms of disinfection compared to the current method: the washer disinfector.

Marburg University*

After favorable results of disinfection of rigid endoscopes using Impelux™ technology, Marburg University investigated the effectiveness of the disinfection of channel-less flexible endoscopes using the D60. The conclusion of the study is that the D60 efficiently reduces bacterial contamination of flexible endoscopes.

UZ Gent*

UZ Gent investigated the effectiveness of the disinfection of TEE probes in the D60. The conclusion: A clear reduction of the number of CFU is noticeable after disinfection with the D60. The handle contains noticeably fewer germs after disinfection with the D60 compared to the Soluscope.


*Research is available on request from info@uvsmart.nl


Download our whitepapers
and clinical research

Read more about disinfection with UV technology here.

Disinfection of channel-less flexible ENT copes

An effective method of disinfection in
Oto-Rhino-Laryngology.
Download research

Disinfection of
electronic devices

Research on UV technologyin a
healthcare environment.
Download research

Disinfection of rigid ENT
scopes in ENT

A fast and effective way of disinfection,
based on UV Technology
Download research

View our other products

D25

Disinfection of medical devices in 25 seconds

  • Disinfection of hard, non-porous surfaces and packaging
  • Simple, quick and consistent; supports hand hygiene during use
  • Saves disinfectants and damage caused by alcohol
  • Sustainable, economical and environmentally conscious

Discover accessories

Discover all additional D60 products in our collection.

Validation Tool

Use the Validation Tool in conjunction with the included sensor to monitor difficult areas of disinfection for UV-C dose in the D60.

No disposables needed during the measurement process

Receive data via an application directly on your smartphone

Flight case

Safely transport the D60 to your destination. The rubber handle and wheels make it easy to transport the D60.

Prevent damage to the D60 during transportation

Transport the D60 easily using the wheels on the bottom

Validation stickers

The Validation stickers allow you to verify that the UV-C dose is sufficient. The stickers change color when UV-C is detected.

Check in 1 cycle whether the UV-C dose is high enough

Receive 1000 stickers per delivery
